Vertical Flange Mounted Motor Canopy

Name: Vertical Flange Mounted Motor Canopy
Brand: IndiGrate Composites Pvt. Ltd
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Vertical Flange Mounted Motor Canopy Specification

Connection
Welded/bolted construction

Open Style
Vertical Flange Mounted

Dimension (L*W*H)
As per motor size (customizable)

Insulation
Optional Weather Protection Coating

Window Material
PVC Window

Life Span
15+ Years

Wall Materials
Galvanized Steel Sheets

Door Material
Heavy-duty Steel with Latch

Material
Powder coated/Galvanized steel

Roof Material
Powder Coated Steel Sheet

Thickness Of Wall Panel
2-4 mm

Door
One

Window
One

Floor Material
FRP

Floor Load
Suitable for industrial mounting

Roof Dead Load
Medium-suitable for canopy applications

Roof Live Load
Standard industrial load

Earthquake Intensity
Designed for Industrial Safety Norms

Color
Blue/Grey (customizable)

Use
Motor Protection and Mounting

Noise Attenuation
Special acoustic lining available (optional)

Ingress Protection
IP55 / IP65 available

Corrosion Resistance
Epoxy or powder coated finish

Finish
Gloss/Matte Powder Coating

Applications
For electric motors in pumps, compressors, HVAC units

Accessories
Provision for lifting hooks, cable entry gland plates

Weight
Varies with size and configuration

Mounting Type
Vertical Flange Mounted

Standards
Complies with IS/IEC standards

Ventilation
Louvered side panels for heat dissipation

Suitable Ambient Temperature
-20C to +55C

Vertical Flange Mounted Motor Canopy Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Vadodara

Payment Terms
Cash Advance (CA)

Supply Ability
1000 Pieces Per Month

Delivery Time
4 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Standard Pack

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO

About Vertical Flange Mounted Motor Canopy

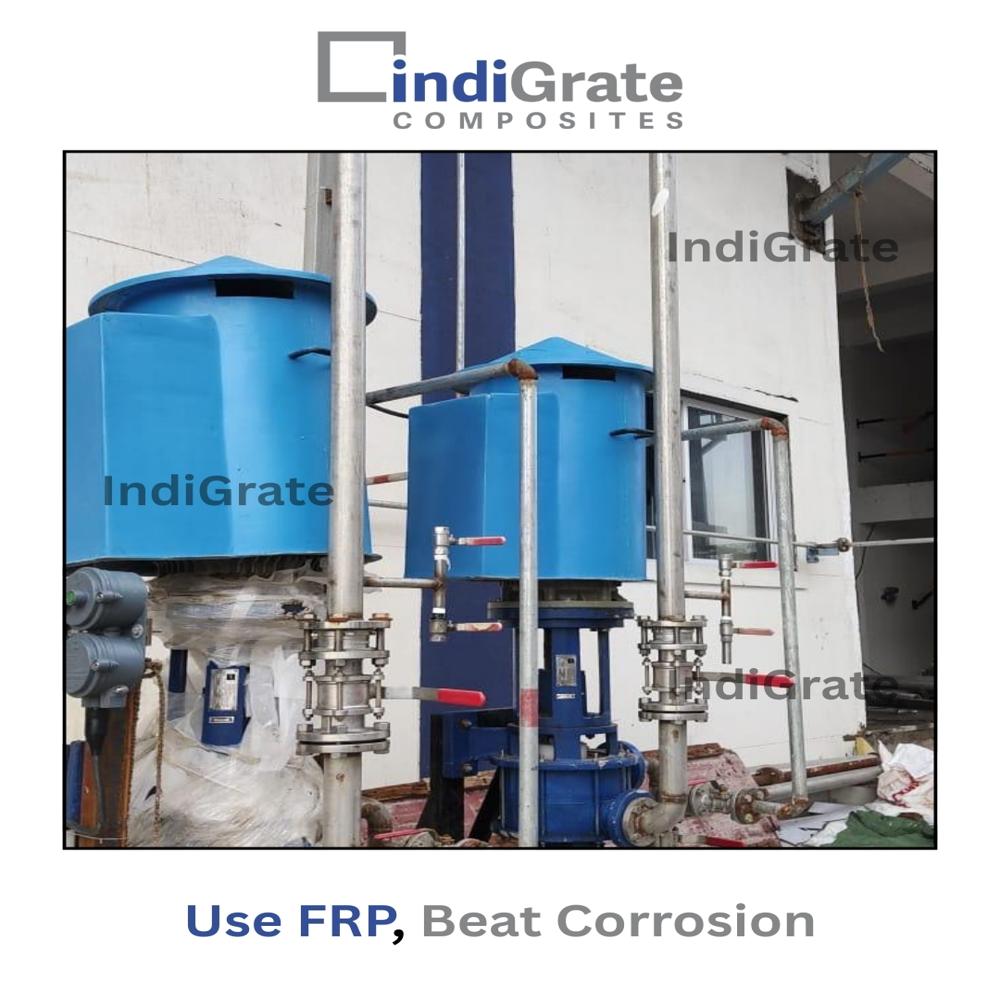

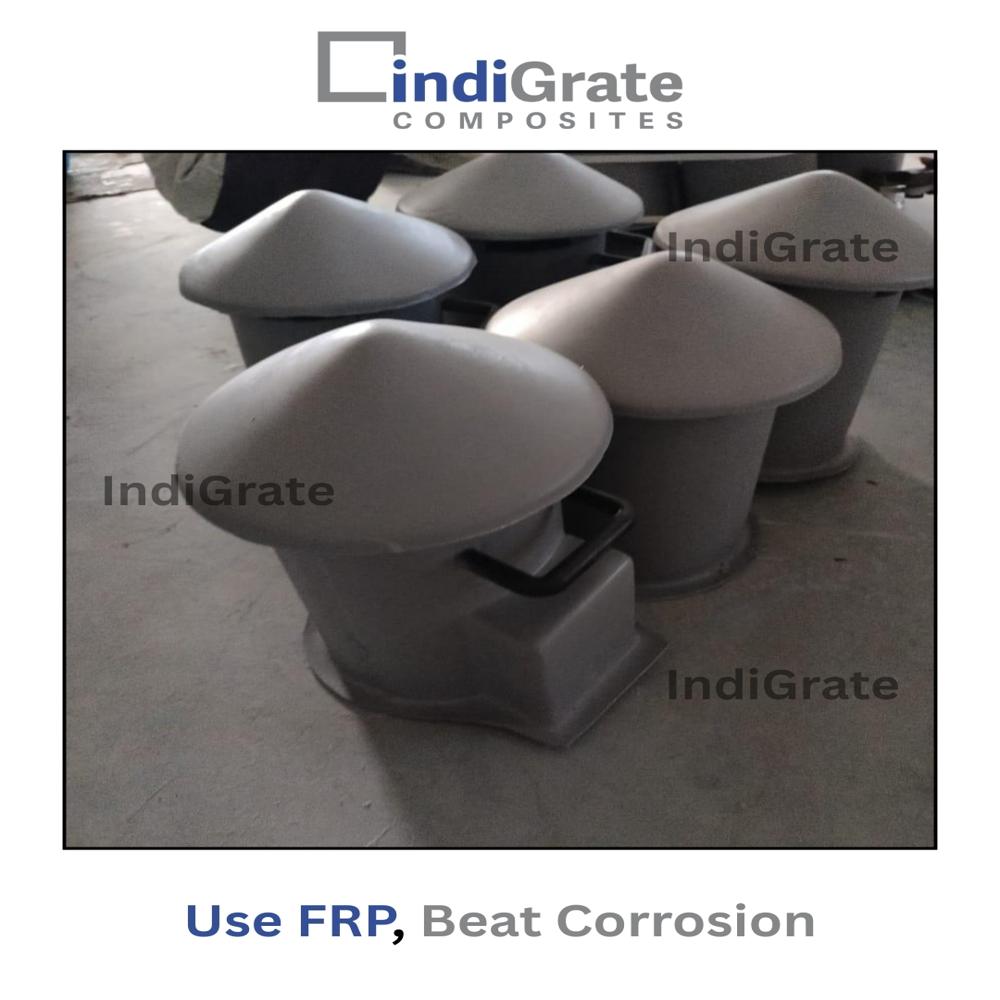

A FRP Vertical Flange Mounted Motor Canopy refers to a protective cover made from FRP (Fiber Reinforced Plastic) designed specifically for vertically mounted motors that are attached to a system using a flange mount

Vertical Flange Mounted Motor:

Vertical Motor: A motor installed in a vertical position (shaft facing up or down).

Flange Mounted: The motor is attached to its mounting surface using a flange, a projecting rim or collar that provides extra support and alignment.

Common Applications:

Cooling towers

Water pumping systems

Chemical and process industries

Outdoor motor installations

Superior Motor Protection and Durability

This canopy is designed to safeguard motors from dust, water, corrosion, and environmental stresses common in industrial settings. The robust construction with powder or epoxy-coated finishes ensures protection against chemical exposure, harsh climates, and mechanical impacts. Louvered panels optimize airflow, maintaining optimal operational temperature, while heavy-duty materials guarantee long-term structural integrity.

Flexible, Customizable Design for Industrial Needs

The canopy is available in multiple IP ratings (IP55/IP65), can be tailored to specific motor sizes, and supports both gloss and matte powder-coated finishes for aesthetic or operational requirements. Optional accessories like acoustic lining, weather protection insulation, and multiple cable entry points enhance usability. The single-door and window design, along with industrial-grade FRP flooring, cater to the rigorous requirements of process, HVAC, and equipment mounting.

FAQ's of Vertical Flange Mounted Motor Canopy:

Q: How does the Vertical Flange Mounted Motor Canopy help protect electric motors in industrial environments?

A: The canopy offers robust protection by providing an IP55 or IP65 ingress rating, shielding motors from dust, water jets, and environmental hazards. Its powder-coated or galvanized steel panels resist corrosion, while louvered ventilation ensures efficient heat dissipation, extending motor lifespan and maintaining safe operation.

Q: What customization options are available for this motor canopy?

A: The canopy's dimensions, color (blue/grey options), and finish (glossy or matte) can be tailored according to the motor size and customer preference. Additional options include acoustic lining for noise reduction, weather-protective insulation, and provision for specialized cable entry gland plates.

Q: When should I opt for the optional acoustic lining?

A: Consider adding the acoustic lining when the motor canopy will be installed in areas sensitive to noise, such as indoor facilities or near occupied workspaces. This special lining reduces operational sound, ensuring a quieter environment without affecting ventilation or protection.

Q: Where can this motor canopy be installed?

A: The canopy is suitable for use in a wide range of industrial applications, including pump stations, compressor lines, HVAC installations, and machinery enclosures-anywhere vertical flange-mounted motors require reliable weather and mechanical protection.

Q: What is the typical process for installing the Vertical Flange Mounted Motor Canopy?

A: Installation follows standard industrial practices. First, select the appropriate size and configuration. The canopy, which is delivered with welded or bolted construction, is mounted over the motor using lifting hooks. Secure all bolts, connect cable through pre-provided gland plates, and ensure weather stripping or insulation (if chosen) is properly applied.

Q: What benefits does the corrosion-resistant coating provide?

A: The epoxy or powder-coated finish protects the steel structure from rust and chemical corrosion, significantly increasing the canopy's longevity even in harsh industrial or outdoor conditions, and reducing maintenance requirements over its 15+ year lifespan.
